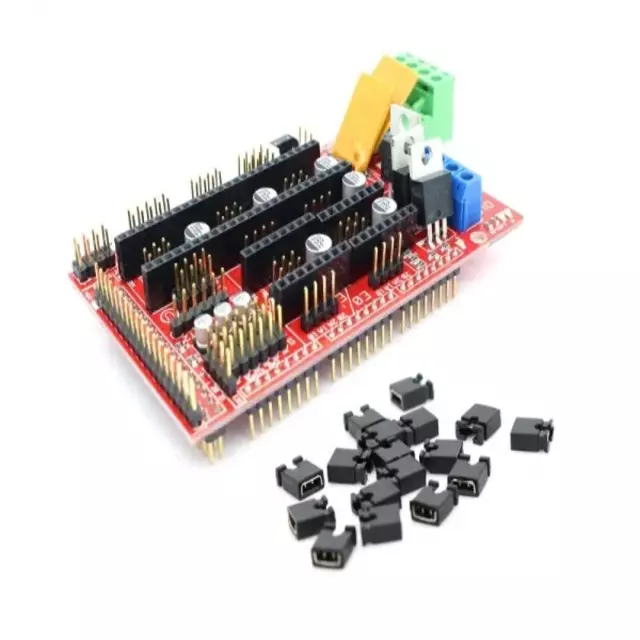

RAMPS 1.4 CNC SHIELD FOR ARDUINO MEGA2560

Enhance your CNC (Computer Numerical Control) capabilities with the RAMPS 1.4 CNC Shield designed specifically for Arduino Mega 2560. Whether you're a hobbyist, a student, or a professional in need of robust CNC control, this shield provides the versatility and reliability required for a wide range of machining applications.

Key Features:

• Compatibility: Designed to seamlessly integrate with Arduino Mega 2560, the RAMPS 1.4 CNC Shield ensures easy setup and compatibility with existing Arduino projects.

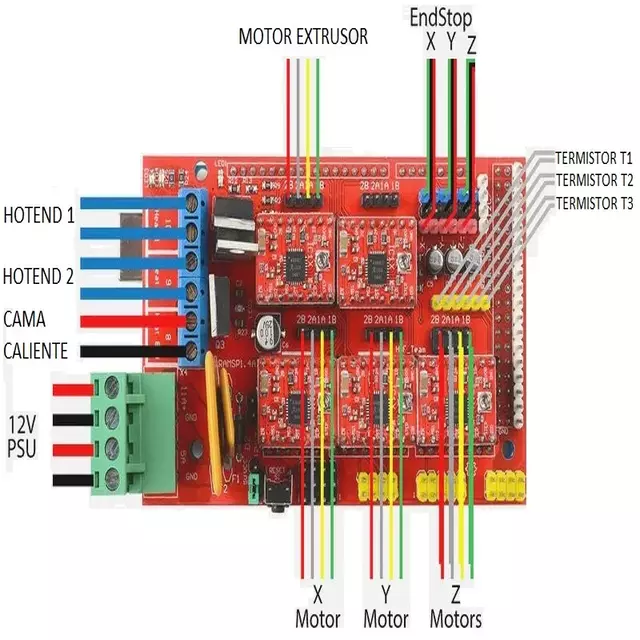

• Multi-Axis Control: Drive up to 5 stepper motors (3 standard axes plus 2 additional axes for dual extruders or other configurations), allowing for complex movements and precise control in CNC applications.

• Expandability: Features sockets for easily adding and upgrading stepper motor drivers (such as A4988 or DRV8825), providing flexibility to scale your CNC setup as needed.

• Safety Features: Includes built-in fusible resistors and diodes for protection against short circuits and reverse voltage, ensuring safe and reliable operation of your equipment.

• Versatility: Ideal for a variety of CNC tasks including milling, engraving, laser cutting, and 3D printing, the RAMPS 1.4 CNC Shield caters to diverse project needs with ease.

• Ease of Use: Pin headers and clearly marked labels make it straightforward to connect peripherals and components, simplifying setup even for users with limited electronics experience.

Applications:

The RAMPS 1.4 CNC Shield facilitates a broad spectrum of CNC applications, including:

• Precision Milling: Achieve intricate cuts and precise detailing in various materials.

• Engraving and Carving: Create detailed designs and patterns with high accuracy.

• 3D Printing: Control multiple stepper motors for precise layering and complex geometries.

• Laser Cutting/Engraving: Drive laser modules with accuracy for engraving or cutting tasks.

  Specifications:

  • Compatible Boards: Arduino Mega 2560 (not included)
  • Stepper Motor Drivers: Supports up to 5 drivers (A4988, DRV8825, etc.)
  • Power Input: Compatible with 12V to 24V DC input
  • Additional Features: Includes headers for end stops, thermistors, and other accessories
