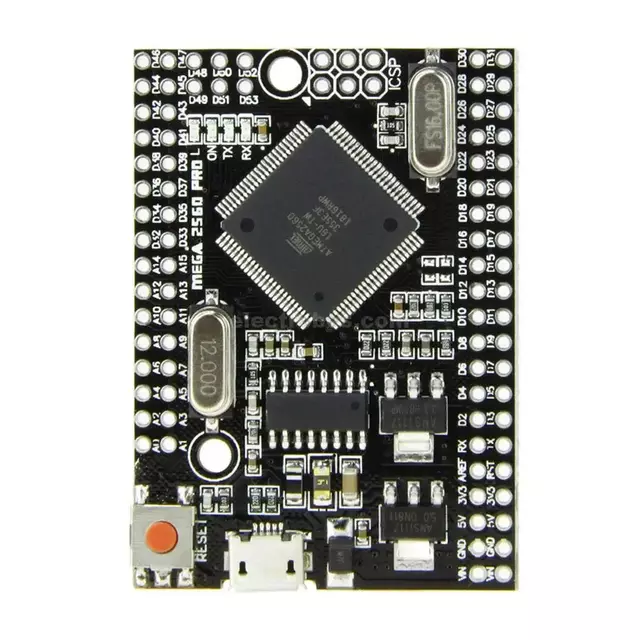

Arduino MEGA 2560 PRO Mini Compatible With Male Pin Headers

The Arduino MEGA 2560 PRO Mini Compatible with Male Pin Headers is a compact yet powerful microcontroller board designed for advanced electronics projects. Built around the ATmega2560 microcontroller, it offers an extensive array of digital and analog I/O pins, making it suitable for a wide range of applications that require robust connectivity and computational capabilities.

Key Features:

1. ATmega2560 Microcontroller: The heart of the Arduino MEGA 2560 PRO Mini is the ATmega2560, a powerful 8-bit AVR microcontroller running at 16 MHz. It provides ample flash memory (256 KB) and SRAM (8 KB) for storing programs and data, as well as EEPROM for non-volatile storage.

2. Extensive I/O Capability: With 54 digital I/O pins (of which 15 can be used as PWM outputs) and 16 analog input pins, the board supports complex projects involving multiple sensors, actuators, displays, and communication interfaces. This versatility allows for the creation of intricate and interactive electronic systems.

3. Compact Design: The MEGA 2560 PRO Mini features a compact form factor that makes it suitable for applications where space is limited. Despite its size, it retains all the functionalities of the Arduino MEGA 2560, ensuring compatibility with existing Arduino shields and expansion boards.

4. Male Pin Headers: Equipped with male pin headers, the board facilitates easy integration into custom circuits and prototyping setups. These headers provide secure connections to breadboards, jumper wires, and other components, allowing for quick assembly and modification of circuits as needed.

5. USB Connectivity: The board includes a micro-USB port for programming and power supply. It can be programmed using the Arduino IDE (Integrated Development Environment), which supports a vast community-driven library of code examples and libraries, simplifying the development process.

6. Compatibility: The Arduino MEGA 2560 PRO Mini is fully compatible with Arduino software and shields, ensuring seamless integration with existing Arduino projects and accessories. It supports a variety of operating voltages (5V and 3.3V) and communication protocols (UART, SPI, I2C), making it adaptable to diverse project requirements.

Applications:

• Robotics and Automation: Control motors, sensors, and actuators in robotic systems.
• Data Acquisition Systems: Collect and process data from sensors for monitoring and analysis.
• Embedded Systems: Develop embedded applications for industrial control and IoT (Internet of Things) devices.
• Prototyping and Development: Rapidly prototype and iterate electronic designs for various applications.

Specification:

• Microcontroller: ATmega2560
• USB-TTL converter: CH340
• Power Out: 5V-800mA
• Data RAM Type/Size: 8Kb
• Data ROM Type/Size: 4Kb
• Interface Type: ISP
• Operating temperature: −40С°/+85С°

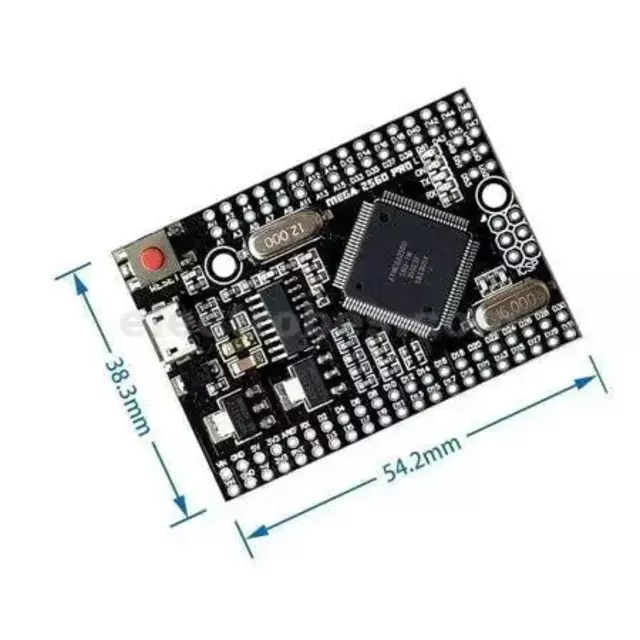

• Length × Width: 38×54mm
• Clock Frequency: 16MHz
• Operating Supply Voltage: 5V
• Digital I/O: 54
• Analog I/O: 16
• Memory Size: 256kb
• Power IN: 5V
• Power IN. VIN/DC Jack: 5V
• Power Consumption: 5V 220mA
• Logic Level: 5V
• USB: Micro USB
