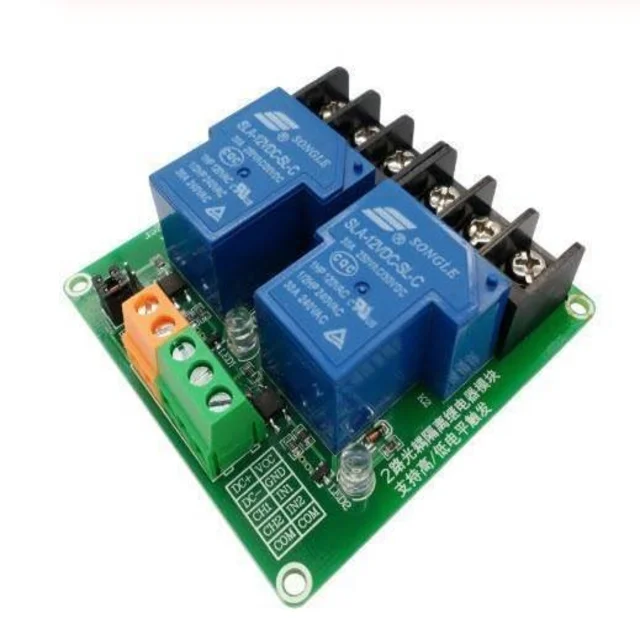

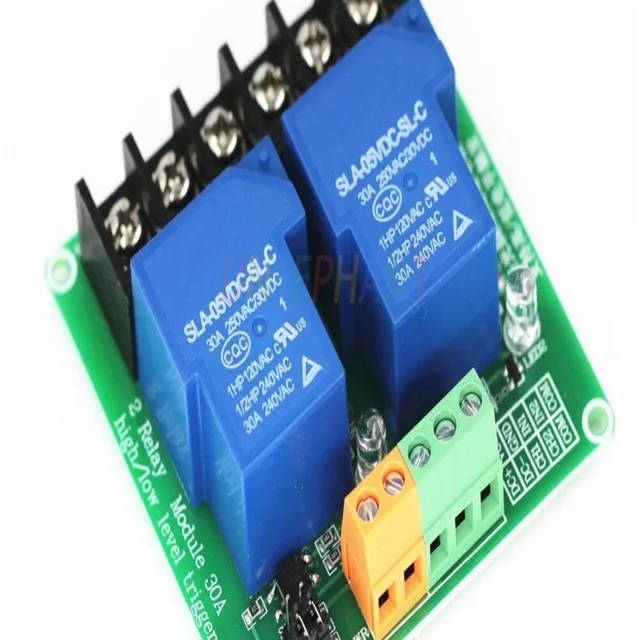

5v 30a 2 channel Relay Module

The 5V 30A 2-Channel Relay Module is a robust and versatile solution for controlling high-current devices with precision and ease. Perfect for both professional and DIY projects, this module allows you to automate and manage various electronic applications, from home appliances to industrial equipment.

Key Features:

• High Current Capacity: Each relay can handle up to 30A of current, making this module suitable for controlling high-power devices like motors, lights, and heavy-duty machinery.
• Dual Channel Design: With two independent relays, you can control two separate devices or circuits simultaneously, providing flexibility for multiple applications.
• 5V Logic Compatibility: Designed to operate with 5V logic levels, this module is compatible with most microcontrollers, including Arduino, Raspberry Pi, and other development boards.
• Optocoupler Isolation: Each relay is optically isolated to protect your control circuit from high-voltage spikes and electrical interference, ensuring safe and reliable operation.
• LED Indicators: Equipped with LED indicators for each relay, providing a clear visual status of the relay's operation, making troubleshooting and monitoring easier.
• Easy Integration: Features standard pin configurations and clear labeling for straightforward wiring and integration into your projects, reducing setup time and complexity.

Applications:

• Home Automation: Control household appliances like lights, fans, and HVAC systems from a central control system or smart home setup.
• Industrial Automation: Manage machinery, pumps, and other heavy equipment with precise control for industrial processes.
• DIY Projects: Ideal for hobbyists and makers looking to add high-current switching capabilities to their electronics projects and experiments.
• Remote Control Systems: Use in remote control setups to switch devices on and off from a distance, providing convenience and control.

Technical Specifications:

• Input Voltage: 5V DC
• Relay Output: 30A per relay
• Channel Count: 2
• Relay Type: SPDT (Single Pole Double Throw)
• Isolation: Optocoupler isolated
• Indicator: LED status indicators for each relay

Installation Tips:

• Ensure that the input voltage matches the module's requirements (5V DC) to avoid damage.
• Connect the relays' outputs to the devices you intend to control, following the correct wiring diagram.
• Verify the current ratings and ensure that the connected devices do not exceed the relay's maximum capacity to maintain safety and performance.
