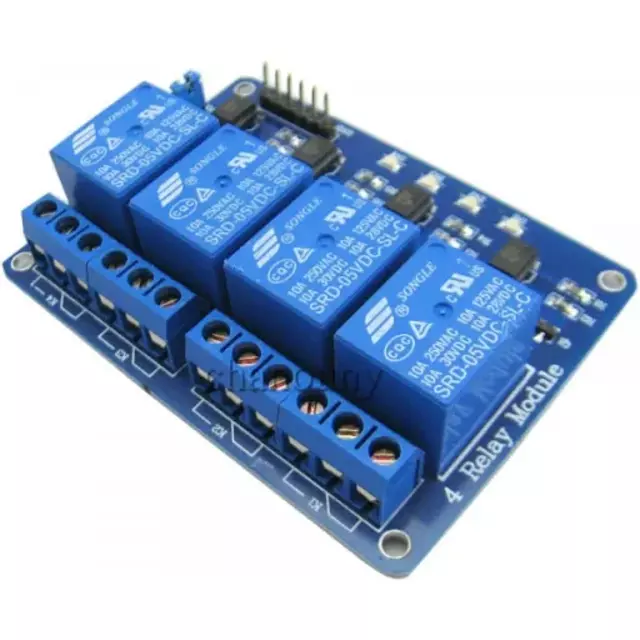

4 Channel Relay Module 5V DC

Take control of your high-power devices with the 4 Channel Relay Module - 5V DC. This versatile relay module is designed to manage up to four separate devices with a single 5V DC control signal, making it an essential component for home automation, industrial control systems, and advanced DIY electronics projects.

Key Features:

• Four Independent Relays: The module is equipped with four relays, each capable of switching high-power devices up to 10A at 250V AC or 15A at 125V AC. This allows you to control multiple appliances or components simultaneously with precision and reliability.

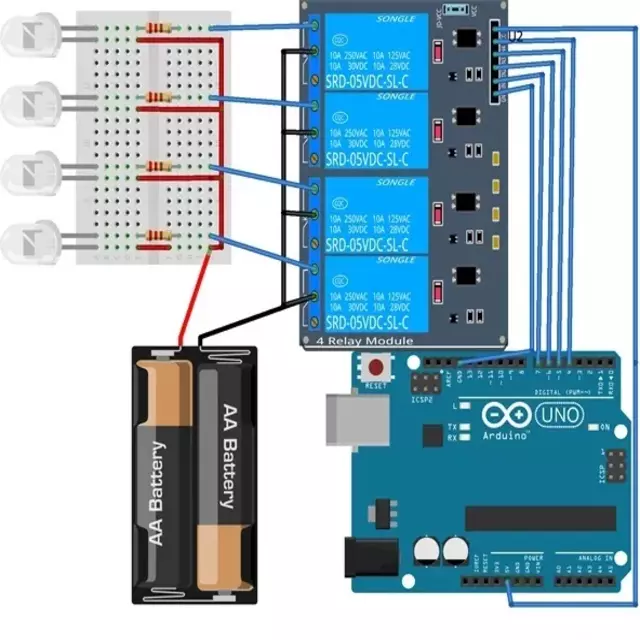

• 5V DC Operation: Designed to work with a 5V DC power supply, the relay module is compatible with a variety of microcontrollers, including Arduino, Raspberry Pi, and other 5V logic systems. This makes it easy to integrate into your existing projects and systems.

• Optocoupler Isolation: Features optocouplers (optical isolators) for each relay channel, providing electrical isolation between the control circuit and the high-power relay output. This isolation enhances safety by protecting your low-voltage control components from high-voltage spikes and noise.

• LED Indicators: Each relay comes with an LED indicator to show its operational status. This visual feedback makes it easy to monitor the module’s performance and troubleshoot any issues during setup and operation.

• User-Friendly Design: The module includes clearly labeled pins for easy connection and wiring. It offers simple and straightforward interfaces for connecting high-power devices and integrating with your control system.

• Compact and Durable Construction: Built with high-quality materials, the 4 Channel Relay Module is compact yet robust, designed to withstand the rigors of frequent use in both industrial and hobbyist environments.

Applications:

• Home Automation: Easily control household appliances such as lights, fans, and heating systems. Integrate the relay module with your home automation system for enhanced functionality and convenience.

• Industrial Control: Manage industrial machinery, motors, and other equipment. The module's robust relays and isolation make it suitable for controlling heavy-duty loads in various industrial settings.

• DIY Electronics Projects: Ideal for hobbyists and engineers working on advanced electronics projects. Use the module to automate processes, control multiple devices, and integrate with various sensors and controllers.

• Remote Control Systems: Incorporate the relay module into remote control setups for switching devices from a distance. Perfect for remote operation and automation tasks.

  Technical Specifications:

  • Relay Channels: 4
  • Operating Voltage: 5V DC
  • Relay Rating: 10A at 250V AC, 15A at 125V AC
  • Control Signal Voltage: 5V DC
  • LED Indicators: Yes (one for each relay)
  • Optocoupler Isolation: Yes
