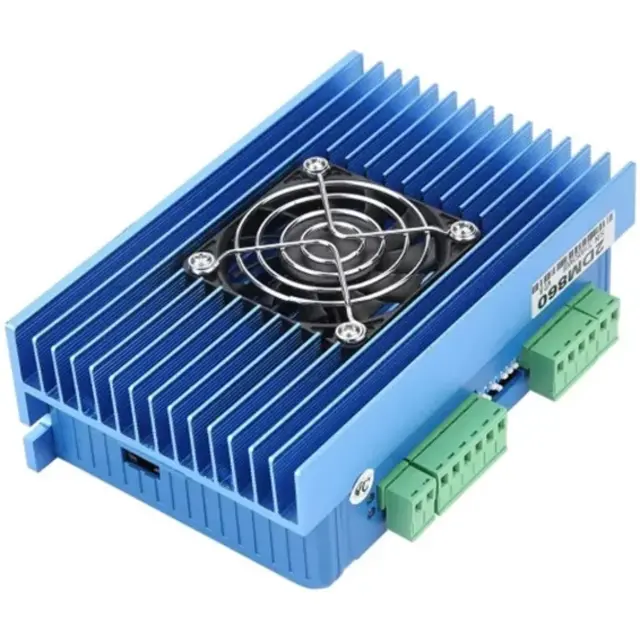

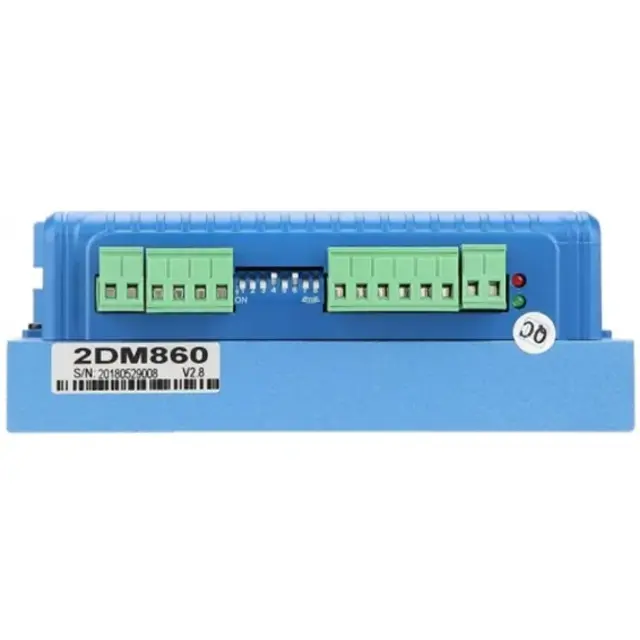

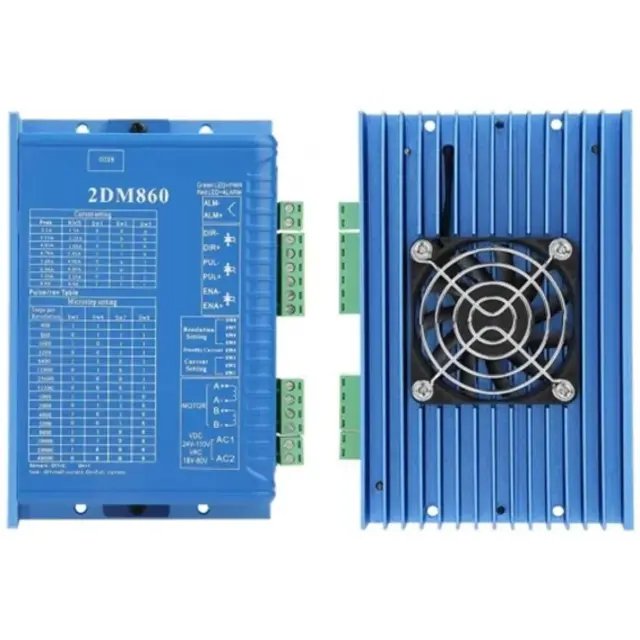

2dm860h 2 Phase Nema23 Nema34 Stepper Motor Driver

The 2DM860H Stepper Motor Driver is engineered for precision and high performance in driving 2-phase Nema23 and Nema34 stepper motors. This advanced driver is an excellent choice for applications requiring accurate motion control and reliable performance, including CNC machines, 3D printers, industrial automation, and robotics. Its robust design and sophisticated features ensure smooth operation and enhanced torque capabilities, making it a valuable component for both hobbyist and professional setups.

Key Features:

• High Performance: The 2DM860H provides superior performance with its advanced microstepping technology. It supports up to 256 microsteps per step, delivering smooth and precise motion control while minimizing vibration and noise.

• Wide Voltage and Current Range: Compatible with a broad range of stepper motors, the driver operates with input voltages from 18V to 80V DC and can handle motor currents up to 7.8A per phase. This versatility makes it suitable for various motor sizes and applications.

• Smooth Operation: Equipped with advanced current control and chopper drive technology, the 2DM860H ensures stable and efficient operation. It effectively reduces motor noise and heat, contributing to overall system reliability and longevity.

• Adjustable Settings: The driver features adjustable DIP switches for setting parameters such as current limit, microstepping resolution, and decay mode. These adjustments allow for customization to meet the specific needs of your application.

• Protection Features: The 2DM860H includes built-in protection mechanisms to safeguard against issues like over-voltage, under-voltage, over-current, and over-temperature. These features enhance the durability of the driver and connected components.

• High Compatibility: Designed to work seamlessly with Nema23 and Nema34 stepper motors, the 2DM860H integrates easily with CNC controllers, motion controllers, and other automation systems, making it a versatile choice for a variety of projects.

• Durable Construction: Housed in a robust aluminum enclosure, the 2DM860H is built to withstand demanding environments. Its durable design ensures reliable performance and long-term operation.

Specifications:

• Input Voltage: 18V to 80V DC
• Output Current: Up to 7.8A per phase
• Microstepping Resolution: Up to 256 microsteps per step
• Protection Features: Over-voltage, Under-voltage, Over-current, Over-temperature
• Interface: DIP switches for parameter adjustments
• Dimensions: Compact design for easy integration

Applications:

• CNC Machines: Achieve precise motion and smooth operation for CNC milling, routing, and other machining tasks.
• 3D Printers: Enhance print quality with stable and accurate stepper motor control.
• Robotics: Implement precise movement and positioning for robotic systems and automated equipment.
• Industrial Automation: Control various automation processes with high efficiency and reliability.

Package Includes:

• 1 x 2DM860H Stepper Motor Driver
• 1 x User Manual
