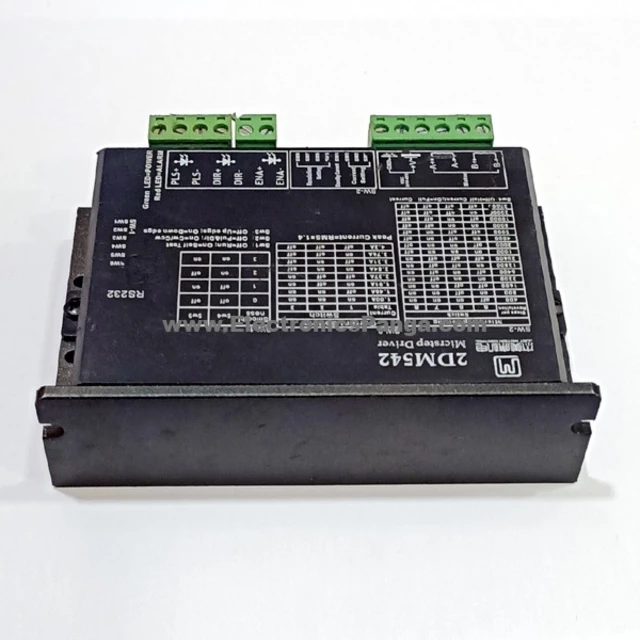

2dm542 Stepper Motor Driver

The 2DM542 Stepper Motor Driver is a versatile and high-performance driver designed to control stepper motors with precision and efficiency. Suitable for a wide range of applications, including CNC machines, 3D printers, robotics, and automated equipment, the 2DM542 ensures smooth and reliable operation in both hobbyist and industrial settings.

Key Features:

• High Performance: The 2DM542 delivers exceptional performance with its advanced microstepping technology, offering high-resolution control for smooth and accurate motor movement. It supports up to 32 microsteps per step, providing precise positioning and minimal vibration.

• Wide Voltage and Current Range: The driver operates within a broad voltage range from 20V to 50V DC and can handle motor currents up to 4.2A per phase. This flexibility allows it to be compatible with various stepper motors, making it a versatile choice for different applications.

• Smooth Operation: Equipped with advanced current control and chopper drive technology, the 2DM542 minimizes motor noise and heat generation while ensuring stable and smooth operation. This feature enhances the overall efficiency and lifespan of both the driver and the stepper motor.

• Advanced Protection Features: The 2DM542 includes built-in protection mechanisms to safeguard against potential issues such as over-voltage, under-voltage, over-current, and over-temperature. These safety features ensure reliable performance and extend the lifespan of the driver and connected components.

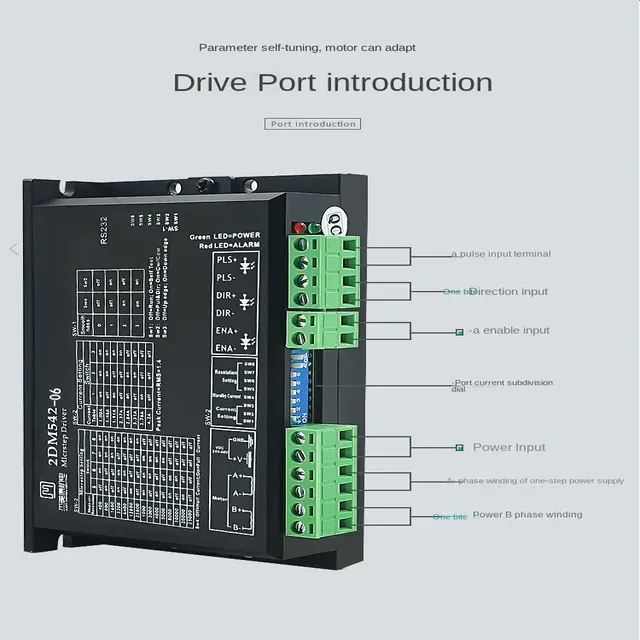

• User-Friendly Interface: The driver features easy-to-use dip switches for adjusting settings such as microstepping resolution, current limit, and other operational parameters. This allows for quick and convenient customization to meet the specific needs of your application.

• High Compatibility: The 2DM542 is compatible with various stepper motors and control systems, making it an excellent choice for upgrading existing setups or building new ones. It interfaces seamlessly with CNC controllers, motion controllers, and other automation systems.

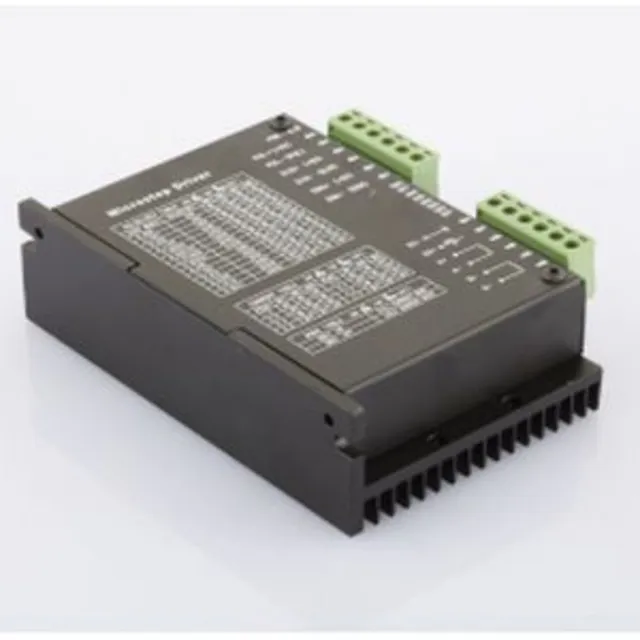

• Compact and Durable Design: The driver is housed in a compact and robust aluminum enclosure, designed to withstand demanding environments. Its durable construction ensures long-term reliability and performance.

Specifications:

• Input Voltage: 20V to 50V DC
• Output Current: Up to 4.2A per phase
• Microstepping Resolution: Up to 32 microsteps per step
• Protection Features: Over-voltage, Under-voltage, Over-current, Over-temperature
• Interface: Dip switches for parameter adjustment
• Dimensions: Compact size for easy integration

Applications:

• CNC Machines: Achieve precise motion control and smooth operation for CNC milling, turning, and routing applications.
• 3D Printers: Enhance print quality and accuracy with stable and reliable stepper motor control.
• Robotics: Implement precise movement and positioning for various robotic systems.
• Automated Equipment: Control automation processes with high accuracy and minimal vibration.

Package Includes:

• 1 x 2DM542 Stepper Motor Driver
• 1 x User Manual
