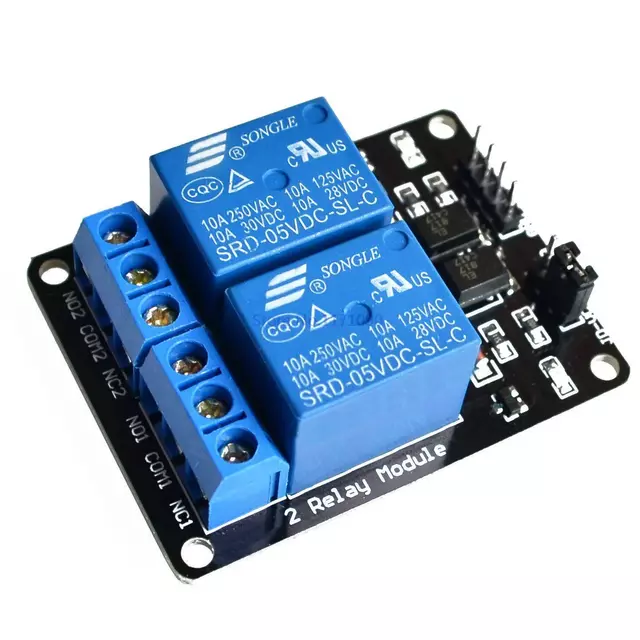

2 CHANNEL 5V RELAY MODULE

Simplify the automation of high-power devices with the 2 Channel 5V Relay Module. Designed for versatility and ease of use, this compact relay module enables you to control two separate high-voltage appliances or devices through low-voltage signals, making it an essential component for home automation, industrial control systems, and DIY electronics projects.

Key Features:

• Dual Relay Control: Equipped with two relays, this module allows you to independently switch two high-power devices on and off. Each relay can handle up to 10A at 250V AC or 15A at 125V AC, providing ample capacity for various applications.

• 5V Operation: Designed to work with a 5V power supply, this module is compatible with a range of microcontrollers such as Arduino, Raspberry Pi, and other 5V logic systems. It provides a straightforward solution for integrating relay control into your projects.

• Optocoupler Isolation: Features optocouplers (also known as opto-isolators) that provide electrical isolation between the control circuit and the relay output. This isolation ensures that any noise or high voltage spikes do not affect your control electronics, enhancing both safety and reliability.

• LED Indicators: Each relay is equipped with an LED indicator to show its operational status. This visual feedback allows for easy monitoring and debugging, ensuring that you can quickly confirm whether the relays are active.

• User-Friendly Design: The module includes clearly labeled pins for easy connections and wiring. Each relay has a set of terminals for connecting high-voltage devices, as well as control pins for interfacing with your microcontroller or control system.

• Compact and Durable: The 2 Channel 5V Relay Module is built with high-quality materials and a compact design, making it suitable for use in a variety of environments. Its durable construction ensures long-lasting performance in both industrial and hobbyist applications.

Applications:

• Home Automation: Control household appliances such as lights, fans, and HVAC systems with ease. Integrate the module with your smart home system for automated control.

• Industrial Control: Manage machinery, motors, and other industrial equipment. Use the relay module to switch high-power loads safely and efficiently.

• DIY Projects: Incorporate the relay module into your DIY electronics projects for tasks such as remote switching, timed control, and automated systems.

• Remote Control Systems: Use the module in conjunction with wireless control systems to operate devices from a distance, perfect for remote automation projects.

  echnical Specifications:

  • Relay Channels: 2
  • Operating Voltage: 5V DC
  • Relay Rating: 10A at 250V AC, 15A at 125V AC
  • Control Signal Voltage: 5V DC
  • LED Indicators: Yes (one for each relay)
  • Optocoupler Isolation: Yes
