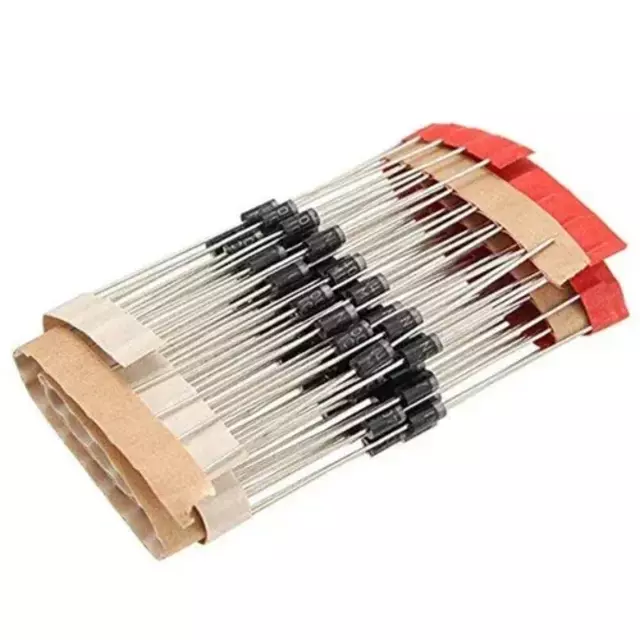

1n4007 Rectifier Diode

Optimize your electronic circuits with the 1N4007 Rectifier Diode, a versatile and dependable component designed for power rectification in various electronic applications. Known for its robustness and high efficiency, this diode is ideal for use in power supplies, converters, and other electronic devices requiring reliable rectification.

Key Features:

• High Reverse Voltage Rating: The 1N4007 diode features a peak repetitive reverse voltage (PRV) rating of 1000V, making it suitable for high-voltage applications and providing reliable performance in demanding environments.

• High Average Forward Current: With an average forward current rating of 1A, this diode is capable of handling moderate power loads, making it suitable for a wide range of rectification tasks in electronic circuits.

• Low Forward Voltage Drop: The diode offers a low forward voltage drop (typically 0.7V at 1A), which minimizes power loss and improves efficiency in rectification processes.

• Reliable Performance: Built with high-quality materials, the 1N4007 is designed to offer consistent and stable performance. Its robust construction ensures long-lasting reliability in various electronic applications.

• Versatile Applications: The 1N4007 diode is suitable for a broad range of uses, including:

  • Power Supplies: Ideal for converting AC to DC in power supply circuits.
  • Rectifiers: Commonly used in rectifier circuits for DC voltage conversion.
  • Voltage Protection: Provides protection against voltage spikes and surges in electronic devices.
  • Signal Conditioning: Useful in circuits that require rectification and signal conditioning.

• Compact Package: The diode comes in a standard DO-41 package, which is compact and easy to mount on PCBs. This package type ensures efficient heat dissipation and reliable operation.

Specifications:

• Type: Rectifier Diode
• Part Number: 1N4007
• Peak Repetitive Reverse Voltage (PRV): 1000V
• Average Forward Current: 1A
• Forward Voltage Drop: Typically 0.7V at 1A
• Surge Current Rating: 30A (for 8.3ms surge)
• Package Type: DO-41
• Operating Temperature Range: -55°C to +150°C
